Goldring

Revolutionizing Analog Playback since 1906

Experience premium analogue sound with Goldring cartridges, crafted for vinyl enthusiasts and audiophiles seeking high-quality audio solutions.

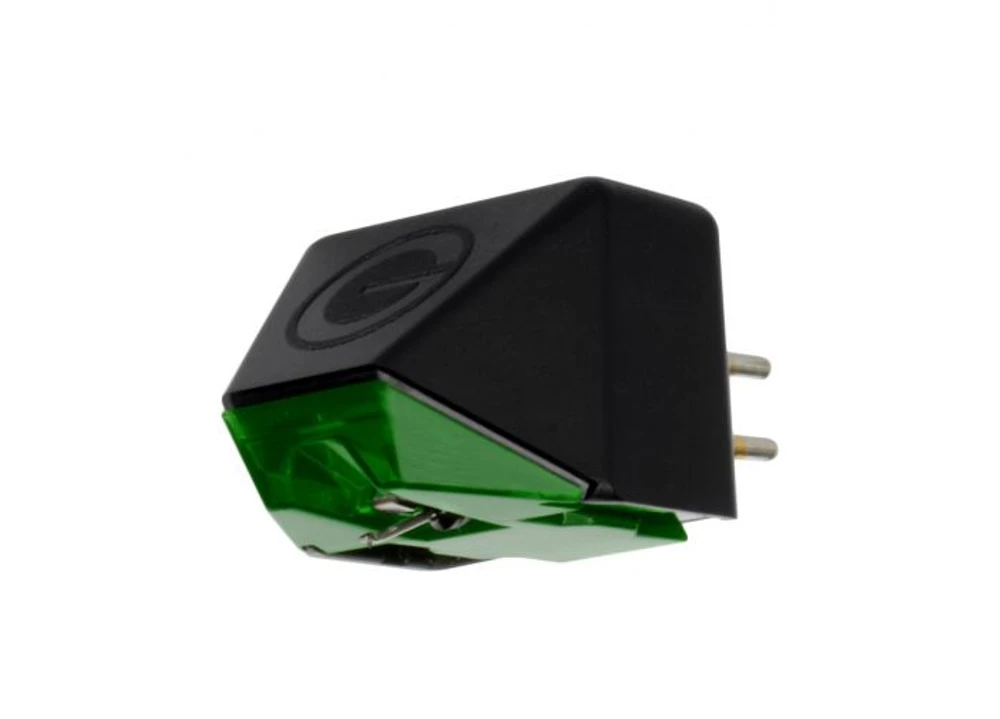

Goldring E2Moving Magnet Cartridge

×
Goldring E2 Moving Magnet Cartridge
Goldring E2 Moving Magnet Cartridge
€ 119,00
in stock
shipping within 2 business days
sku:
GL0056
ean:
5036694030950

The Goldring E2 cartridge is crafted to deliver precise sound reproduction, preserving the artist's original intent and musical nuances. Compatible with a wide range of budget to mid-level turntables, it offers an accessible upgrade to enhance your audio experience.

Key Features

  • Magnetic Duplex Technology™: Dual magnet generator for superior stereo performance.
  • Expert Adjustment: Pre-set stylus angle for optimal tracking.
  • Stylus/Cantilever: Spherical stylus with an aluminum cantilever for improved performance.

Detailed Description

Magnetic Duplex Technology™

The Goldring E2 utilizes Magnetic Duplex Technology™, featuring a 'dual magnet' generator assembly that mirrors the geometry of the original cutting head. This design allows for more accurate reproduction of stereo information from the record groove, resulting in enhanced channel separation and a more immersive soundstage.

Expert Adjustment

Each E-series cartridge, including the E2, is designed for straightforward installation with a pre-set stylus angle using a special adjustment screw. This ensures that the stylus maintains the optimal angle with the record surface, leading to balanced channel output without the need for additional horizontal tracking adjustments. This feature guarantees consistent performance throughout the cartridge's lifespan.

Stylus/Cantilever

The E2 model features a spherical (0.6 mil) stylus paired with an aluminum cantilever. The aluminum cantilever is lightweight and rigid, enabling precise tracing of medium to high frequencies, offering detailed playback and reduced distortion.

goldring-cartridge-e2-02|large

Technical Specifications

Colour Green
Cantilever Aluminum
Stylus Profile Spherical
Stylus Radius 0.6 mil
Stylus Type Replaceable
Frequency Range 20Hz - 20kHz
Channel Balance 1.5dB at 1kHz
Channel Separation > 20dB at 1kHz
Sensitivity 3.5 mV (1kHz @ 5 cm/sec)
Static Compliance 20 mm/N
Vertical Tracking Angle 20°
Load Resistance 47 kΩ
Load Capacitance 100 - 200 pF
Internal Inductance 400 mH
Internal Resistance 410 Ω
Cartridge Mass 6.9g
Fixing Centre 12.7mm (0.5")
Playing Weight 1.5g - 2.5g (2.0g recommended)
Replacement Stylus E2 Stylus
