Goldring

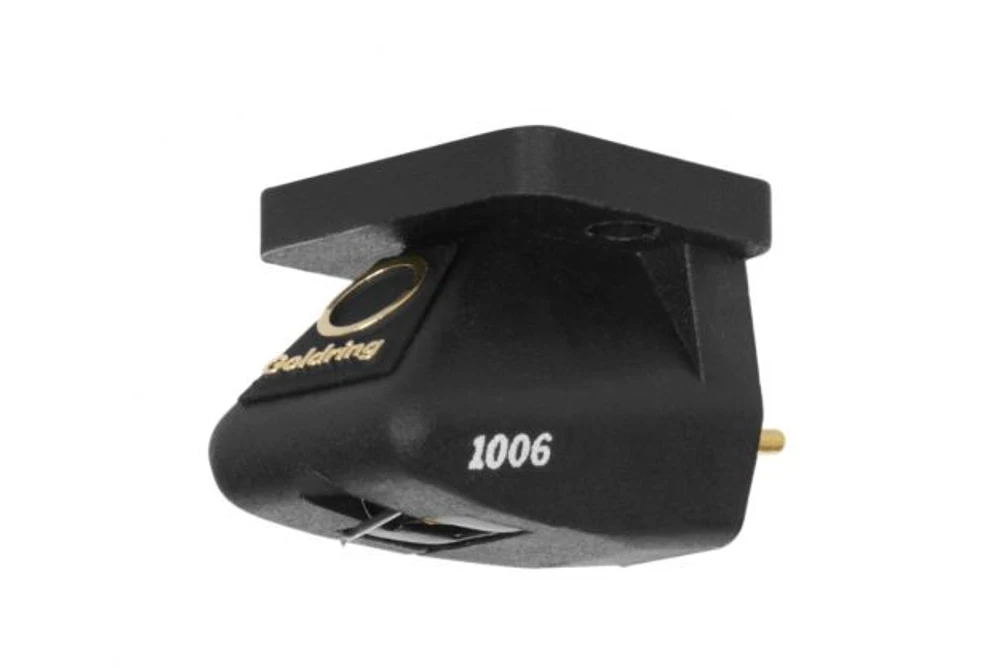

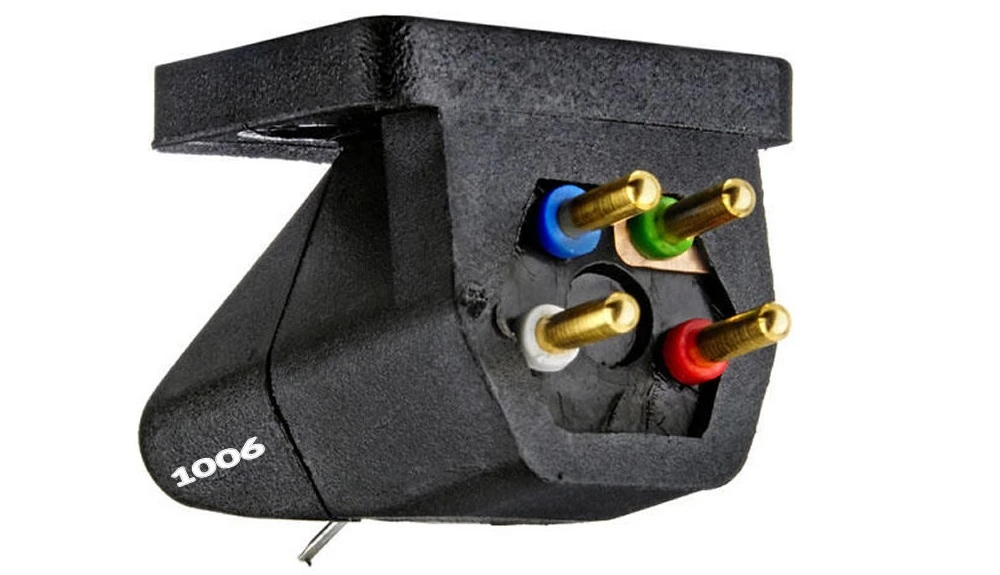

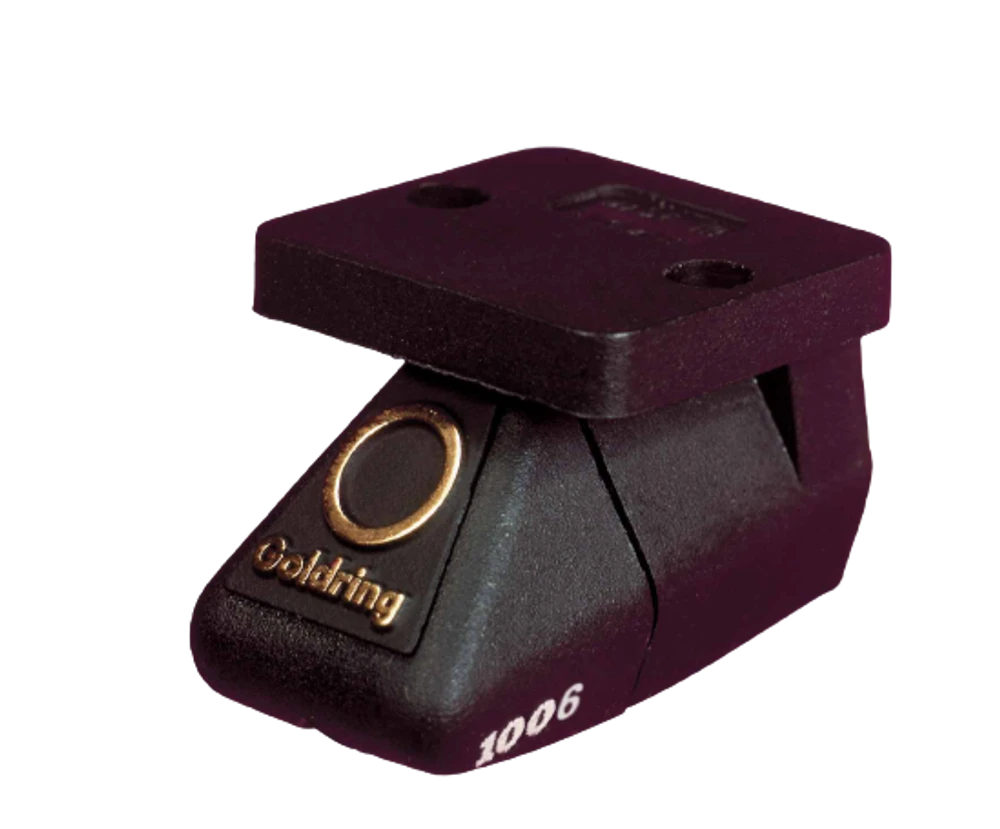

The Goldring 1006 is a high-quality moving magnet cartridge designed for audiophiles seeking precise sound reproduction. This hand-built cartridge features an elliptical stylus, enhancing its ability to accurately trace high-frequency grooves in records. Its construction involves advanced materials and engineering to ensure superior audio performance and durability.

Key Features

• Elliptical Stylus: Accurate high-frequency tracing
• Low Mass Pocan® Body: High strength-to-mass ratio
• High Efficiency Magnetic Circuit: Efficient magnetic circuit design
• Reduced Moving Mass: Ultra-low-mass assembly for precise sound
• Expert Adjustment: Precisely set azimuth for optimal stereo sound

Detailed Description

Elliptical Stylus

The Goldring 1006 features an elliptical stylus that excels at tracing high-frequency grooves more accurately than spherical types. This stylus design offers a lower tip mass, resulting in improved transient response and better sound clarity.

Low Mass Pocan® Body

The cartridge's body is crafted from Pocan®, an ultra-rigid, glass-reinforced polyester. This material ensures the cartridge remains lightweight while providing maximum strength and stability. The one-piece body design allows for secure mounting to the head shell, minimizing unwanted vibrations and enhancing sound quality.

High Efficiency Magnetic Circuit

The 1006 employs a finely etched mu-metal laminated to form the pole pieces, with two formerless coils of four thousand turns each. This unique design reduces mass and creates a highly efficient magnetic circuit, producing a higher output and smoother, extended frequency response compared to conventional designs.

Reduced Moving Mass

At the core of the 1006's design is an ultra-low-mass, micro-miniature Alnico V magnet, welded to a gold-plated nickel tie-bar. This assembly is mounted in a butyl rubber polymer with optimized damping characteristics, stabilizing the cantilever and reducing unwanted vibrations for clearer sound.

Expert Adjustment

Goldring ensures each 1006 cartridge leaves the factory with the stylus azimuth precisely set. Proper azimuth adjustment is crucial for maintaining a balanced stereo sound stage and minimizing channel crosstalk. This meticulous attention to detail ensures optimal performance out of the box.

Technical Specifications

All replacement styli in the Goldring 1000 series are interchangeable.
