Epos

The Epos 7N is a compact, high-performance bookshelf speaker designed for versatility and optimal sound reproduction in various placements. With an adjustable crossover filter and meticulously engineered components, it ensures a balanced and immersive audio experience.

Key Features

• Adjustable Crossover Filter: A switch on the back allows for two different tonal balance settings, optimizing performance based on placement.
• Innovative Cabinet Design: Utilizes a dual-layer MDF structure with high-loss damping and selective bracing to minimize resonance.
• Custom Woofer Technology: Features a mica-filled polypropylene cone woofer for precise bass and midrange performance.
• High-Fidelity Tweeter: Equipped with a 28mm ceramic-coated aluminum dome tweeter, shared with the ES-14N model.
• Flexible Placement Options: Designed to perform well in both semi-free space and near-wall setups.

Four Finishes

Detailed Description

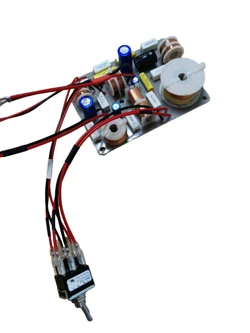

Adaptive Crossover Filter

The Epos 7N includes a switchable crossover filter, providing flexibility for different room placements. The top position is optimized for placement 30-50 cm away from a wall, while the bottom position enhances performance when placed close to a wall or inside a bookshelf. This feature allows users to fine-tune the speaker’s response to suit their environment without compromising tonal balance.

Advanced Cabinet Construction

Constructed with two layers of 8mm MDF separated by a damping layer, the Epos 7N effectively controls unwanted vibrations. A strategically placed wooden block on the top enhances stereo imaging, while an internal brace ensures structural rigidity. The side-vented port tube includes a selectively damped ventilation system to refine mid-band output, delivering a clean and dynamic sound.

High-Performance Woofer

The 130mm woofer is designed using a mica-filled polypropylene cone, offering excellent stiffness and low distortion. A low-hysteresis rubber surround and a Nomex spider maintain linear movement, while a 30mm voice coil with an impedance control ring ensures minimal intermodulation distortion. The double-magnet system enhances motor force while reducing stray fields.

Premium Tweeter Design

The Epos 7N incorporates the same tweeter as the ES-14N, featuring a 28mm ceramic-coated aluminum dome. The tweeter’s ferrite magnet and optimized airflow design ensure precise high-frequency reproduction without ferrofluid damping, maintaining stable temperatures and low compression.

Optimized Impedance and Response Curve

With a carefully tailored response curve, the Epos 7N adapts well to different placements. The low-end roll-off is designed to accommodate room gain, preventing excessive bass buildup. Sensitivity measures 86dB (switch up) and 89dB (switch down), and with a stable 4 Ohm impedance, the speaker is compatible with a wide range of amplifiers.

Technical Specifications
