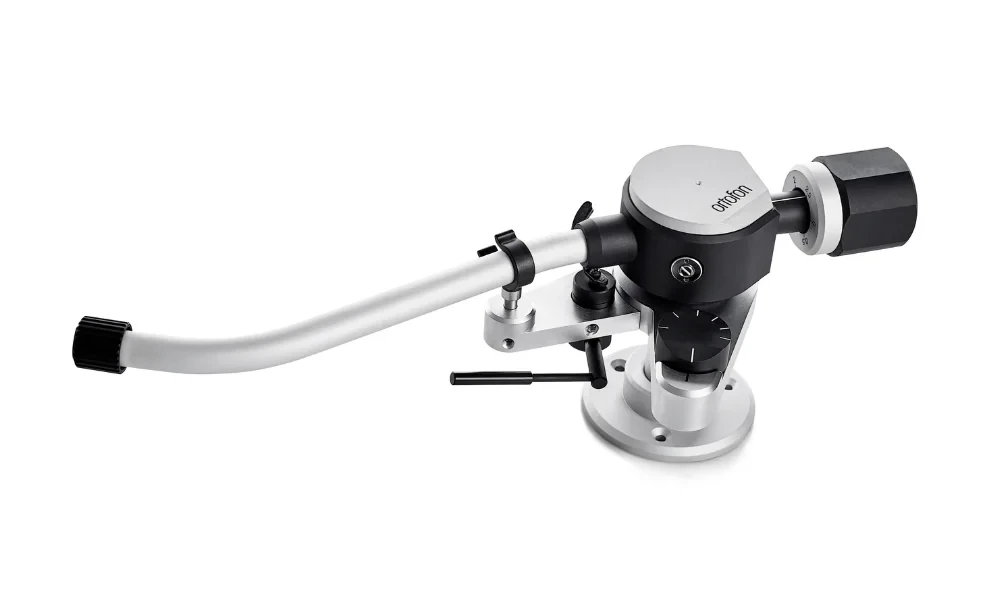

Ortofon AS-212RTonearm
€ 2.999,00
in stock
shipping within 2 business days
- Free shipping on orders over € 100,- (NL)
- Returns possible within 14 days
- Pickup available (Vries, Drenthe)
Checkout our Sales and DiscountsThe Ortofon AS-212R is a 9-inch high-precision tonearm, meticulously engineered with over 130 redesigned components. It is designed for audiophiles seeking exceptional sound quality, durability, and compatibility with various turntable setups.
Key Features
- Statically balanced design for easy adjustments
- Universal brass connector for cartridge versatility
- Includes Ortofon 6NX-TSW-1010 Tonearm cable and two counterweights
- Fulfills Baerwald alignment for minimal tracking error
Precision Engineering
The AS-212R tonearm includes over 130 redesigned components to ensure high mechanical precision and performance. Each unit undergoes rigorous testing to capture subtle musical nuances, delivering exceptional audio clarity.
Compatibility
The tonearm is highly versatile, featuring a universal brass connector compatible with various cartridges and headshells. It includes two counterweight options, accommodating a broad range of cartridges, from the Ortofon Concorde to the SPU series, providing adaptability and flexibility for various setups.
Easy Adjustments
The AS-212R is statically balanced, simplifying the adjustment of needle pressure and anti-skating settings. Its intuitive design makes it easy to achieve optimal audio performance with minimal effort. The tonearm is also compatible with a wide range of tonearm cables, thanks to its 5-pol DIN socket.
Technical Specifications
| Cartridge Weight Range | 18 to 26g (standard weight, including headshell) 26 to 38g (heavy weight, including headshell) |
| Mounting Distance | 214 mm |
| Effective Length | 232 mm |
| Overhang | 18 mm |
| Offset Angle | 23.75° |
| Arm Shaft Diameter | 18 mm |
| Recommended Arm Shaft Hole Diameter | 22 mm |
| Tonearm Weight | 600g (standard weight) 630g (heavy weight) |
| Height Above Mounting Surface | 59 – 79 mm (up to the top of the tonearm) |
| Counterweight Radial Clearance | 80 mm (standard weight) 89 mm (heavy weight) |
| Distance from Mounting Surface to Platter Top | 20 – 48 mm |
| Effective Arm Mass | 7g |
