IsoTek

The IsoTek EVO3 Genesis is an advanced dual-cell, audiophile-grade mains sine wave generator designed for high-fidelity audio and AV systems. It is specifically tailored for components that maintain a constant current draw, such as CD players, DACs, pre-amplifiers, and music servers. By generating a completely new low-distortion mains sine wave, the EVO3 Genesis ensures superior performance and clean power delivery to connected devices.

Key Features

• Suitable for audio or AV source components
• Full mains sine wave generation system
• Removes Common and Differential Mode mains noise
• Regenerates a new sine wave with 0.03% total harmonic distortion
• Dual 300W mono block power amplifiers
• Independent cell operation
• Stabilizes voltage to 230V +/- 1%
• ISIS© isolation system for resonance elimination
• High-quality internal wiring with Ohno Continuous Cast copper and silver-plating
• Supplied with IsoTek EVO3 Premier power cable

Detailed Description

Power Re-Generation

The IsoTek EVO3 Genesis utilizes advanced sine wave generation technology to produce a new mains sine wave with minimal distortion. It incorporates a synchronous sine wave generator and dual Class A/B 300W mono block power amplifiers. This combination regenerates up to 600W of continuous power with extremely low total harmonic distortion (THD) of between 0.05% and 0.17%, ensuring clean and stable power delivery to connected components.

Independent Sockets

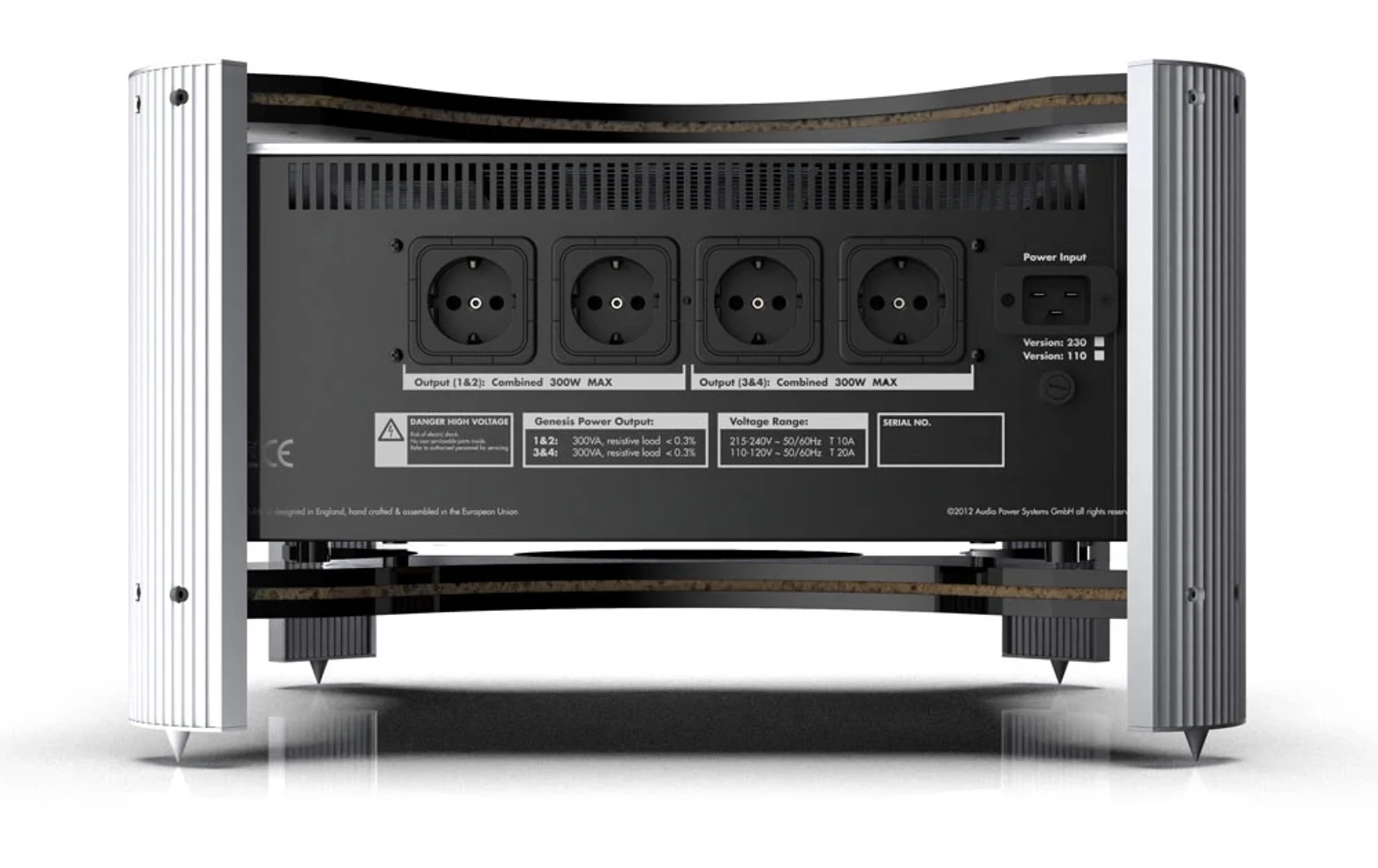

Each outlet socket on the EVO3 Genesis is entirely independent, preventing cross-contamination of Differential Mode mains noise. This design ensures that no two outlet sockets are directly connected, with each one serviced by IsoTek’s unique power cleaning technologies, directly linking back to the PCB.

High-Grade Components

IsoTek products, including the EVO3 Genesis, utilize the finest grade electrical components. This includes custom-made parts and high-quality metals specifically designed for purpose. The PCB designs feature high amperage and low resistance, using up to eight times the standard copper amount prior to silver plating. Internal wiring also includes high-purity coppers with silver plating and FEP or Virtual Dielectric of Air (VDA) for superior performance.

Surge Protection

The EVO3 Genesis offers comprehensive protection against power surges and spikes, which can be detrimental to sensitive audio systems. It employs an array of VDRs for cascading protection, capable of handling over 100,000A. This protection circuit operates in stages, responding quickly and effectively to varying levels of power surges, thus safeguarding the connected equipment.

Solid OCC Copper Ag

IsoTek ensures the highest standard of internal wiring with ultra-pure Ohno Continuous Cast copper solid core conductor strands, silver-plated for low resistance and high amperage. The wiring construction, protected by FEP dielectric, provides exceptional performance and maintains the highest power delivery standards.

Continuous Absolute Power

The EVO3 Genesis delivers absolute power with unrestricted current delivery within the power company’s supply and regulatory limits. This design ensures low impedance and low Direct Current Resistance (DCR), eliminating any current restriction and enhancing dynamic range. The filter circuit maintains low resistance at 50/60Hz while offering high noise cancellation, ensuring pure power delivery.

Technical Specifications

Diagram
