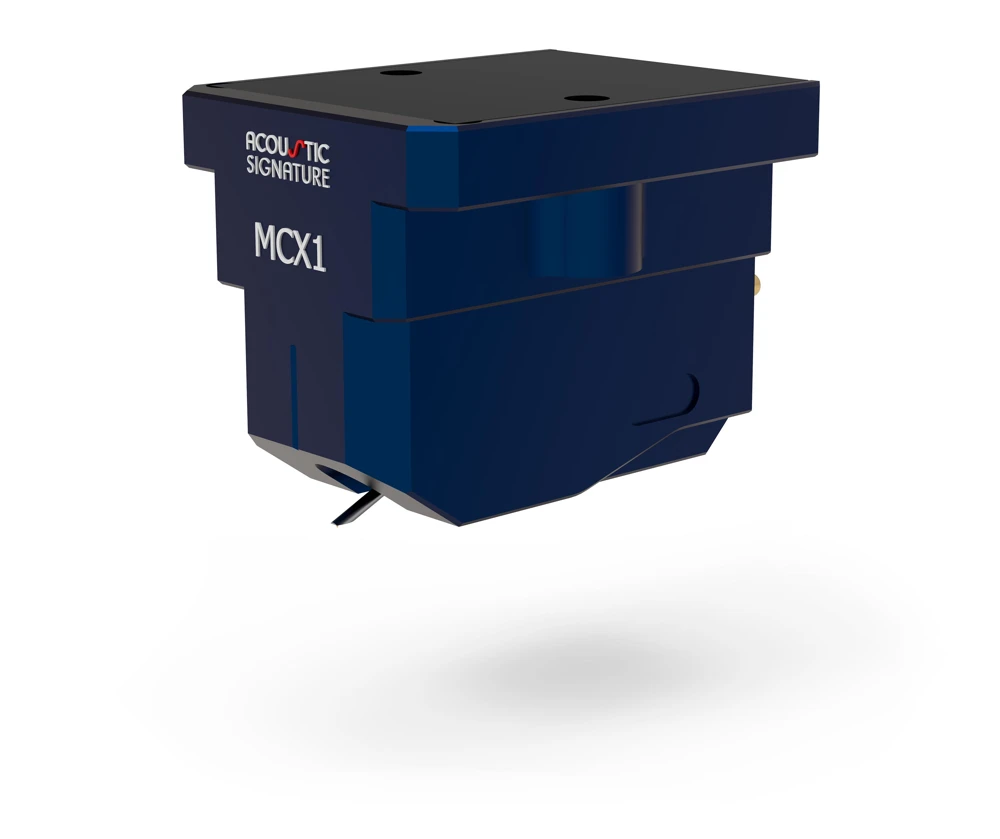

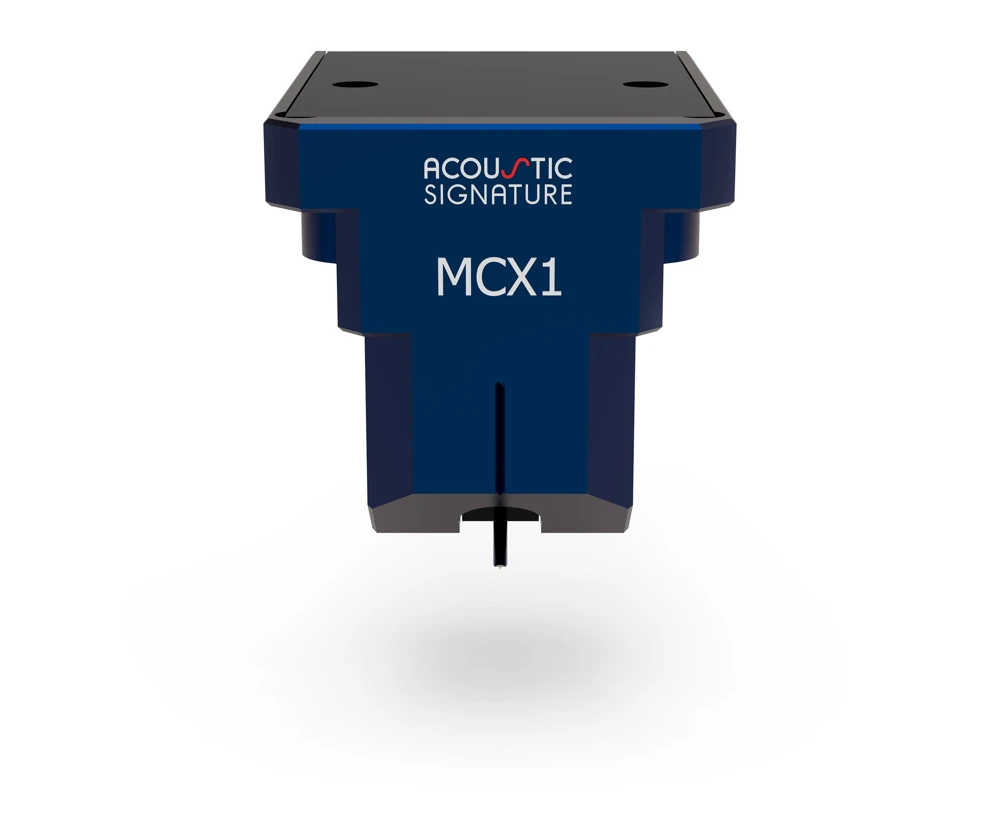

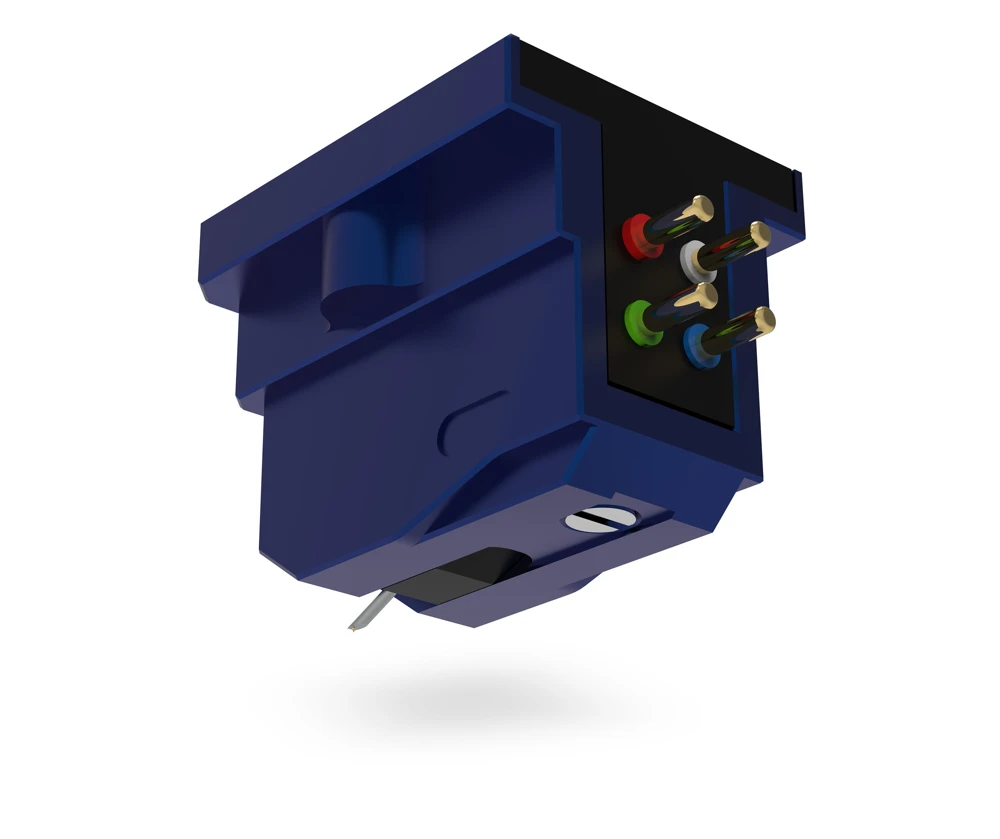

Acoustic Signature MCX1Moving Coil Cartridge
- Free shipping on orders over € 100,- (NL)
- Returns possible within 14 days
- Pickup available (Vries, Drenthe)
Checkout our Sales and DiscountsThe Acoustic Signature MCX1 is a high-performance moving coil (MC) cartridge, designed with precision and modern technology to deliver outstanding audio fidelity. Featuring an elliptical stylus for accurate tracking, precision-wound copper coils for optimal signal transmission, and a CNC-milled, resonance-optimized aluminum chassis, the MCX1 ensures exceptional clarity, detail, and musicality. Optimized for medium to high mass tonearms, it seamlessly integrates into a wide range of setups, making it a versatile choice for discerning audiophiles. Whether you're uncovering subtle nuances in your favorite recordings or immersing yourself in the full depth of a performance, the MCX1 offers a truly captivating listening experience.
Key Features
- Elliptical Stylus: Ensures precise groove tracking for enhanced detail retrieval.
- Copper Coils: Provides excellent conductivity and a natural sound signature.
- Resonance-Optimized Chassis: CNC-milled aluminum body reduces vibrations for superior clarity.
- Easy Mounting: Designed for seamless installation on medium to high mass tonearms.
- Broad Frequency Response: Captures the full spectrum of sound with impressive accuracy.
Detailed Description
Elliptical Stylus for Precise Tracking
The MCX1 is equipped with an elliptical stylus that delivers high tracking accuracy. This design ensures optimal contact with the record groove, reducing distortion and enhancing detail retrieval for a clear and dynamic sound.
High-Quality Copper Coils
Utilizing precision-wound copper coils, the MCX1 maintains a well-balanced and natural tonal character. Copper’s high conductivity ensures efficient signal transmission, allowing for a rich and immersive listening experience.
Resonance-Optimized Aluminum Chassis
A CNC-milled aluminum chassis, engineered with finite element design principles, minimizes unwanted vibrations and enhances stability. This results in a cleaner sound with reduced resonance and distortion, preserving the purity of the audio signal.

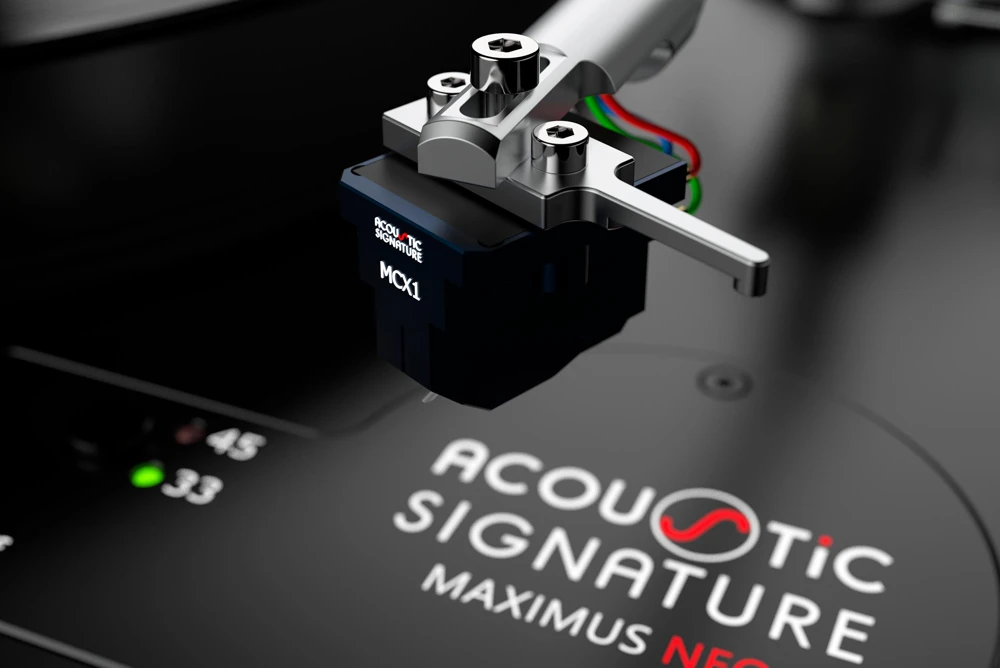

Compatibility with Medium to High Mass Tonearms
The MCX1 is optimized for medium to high mass tonearms, ensuring excellent synergy with a wide range of turntables. Its construction and compliance make it a flexible choice for those seeking both precision and musicality.
Wide Frequency Response for Immersive Sound
With a frequency range of 20 Hz to 25,000 Hz, the MCX1 captures the full spectrum of sound with remarkable detail. Whether listening to delicate highs or deep lows, this cartridge delivers a dynamic and engaging performance.
Technical Specifications
| Cartridge System | Moving-Coil (MC) |
| Stylus Type | Elliptical |
| Coil Material | Copper |
| Cartridge Chassis | Resonance-Optimized Aluminum |
| Voltage Output (1 kHz, 5 cm/sec.) | 0.55 mV |
| Channel Balance (1 kHz) | < 1.5 dB |
| Channel Separation (1 kHz) | > 21 dB |
| Compliance (Dynamic, Lateral) | 15 m/mN |
| Tracking Force Range | 2.1 to 2.5 g |
| Recommended Tracking Force | 2.3 g (23 mN) |
| Frequency Range (-3 dB) | 20 - 25,000 Hz |
| Frequency Response (20 - 20,000 Hz) | ± 2.5 dB |
| DC Resistance | 7 Ω |
| Recommended Load | 100 Ω |
| Cartridge Weight | 12.2 g |
