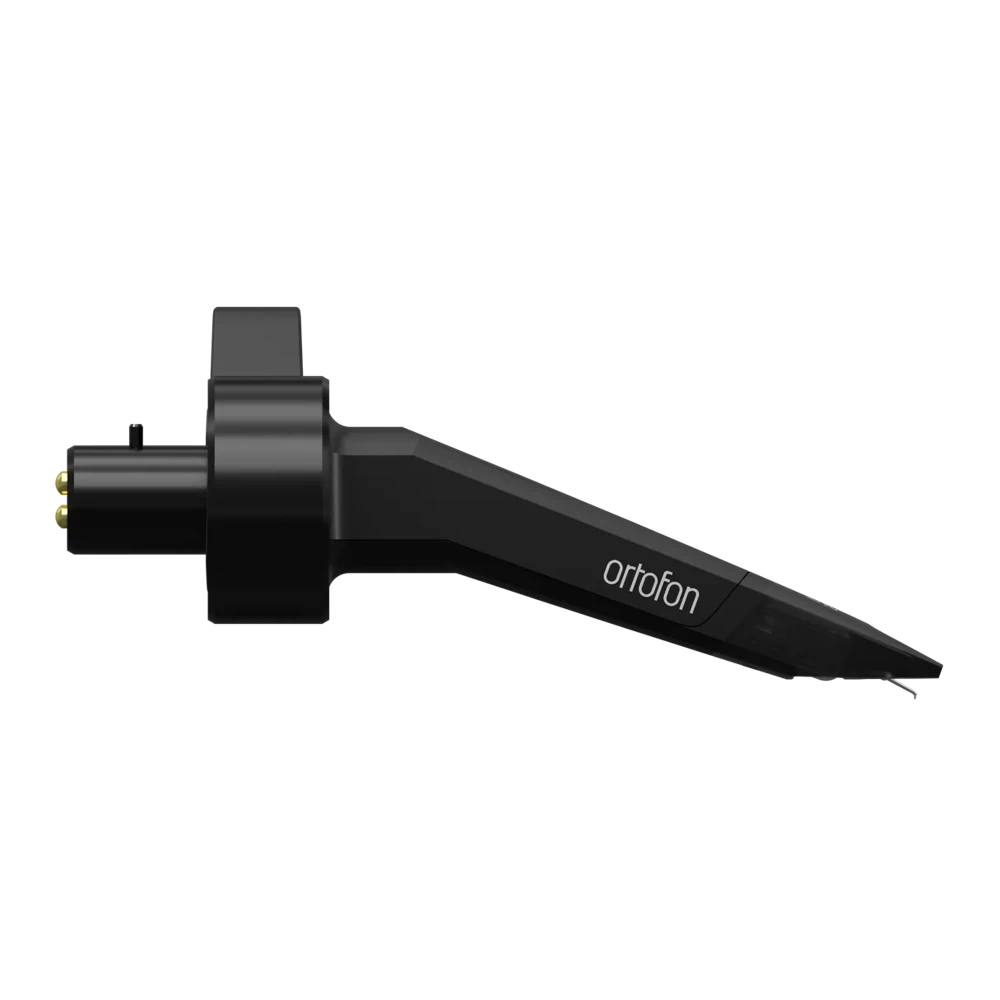

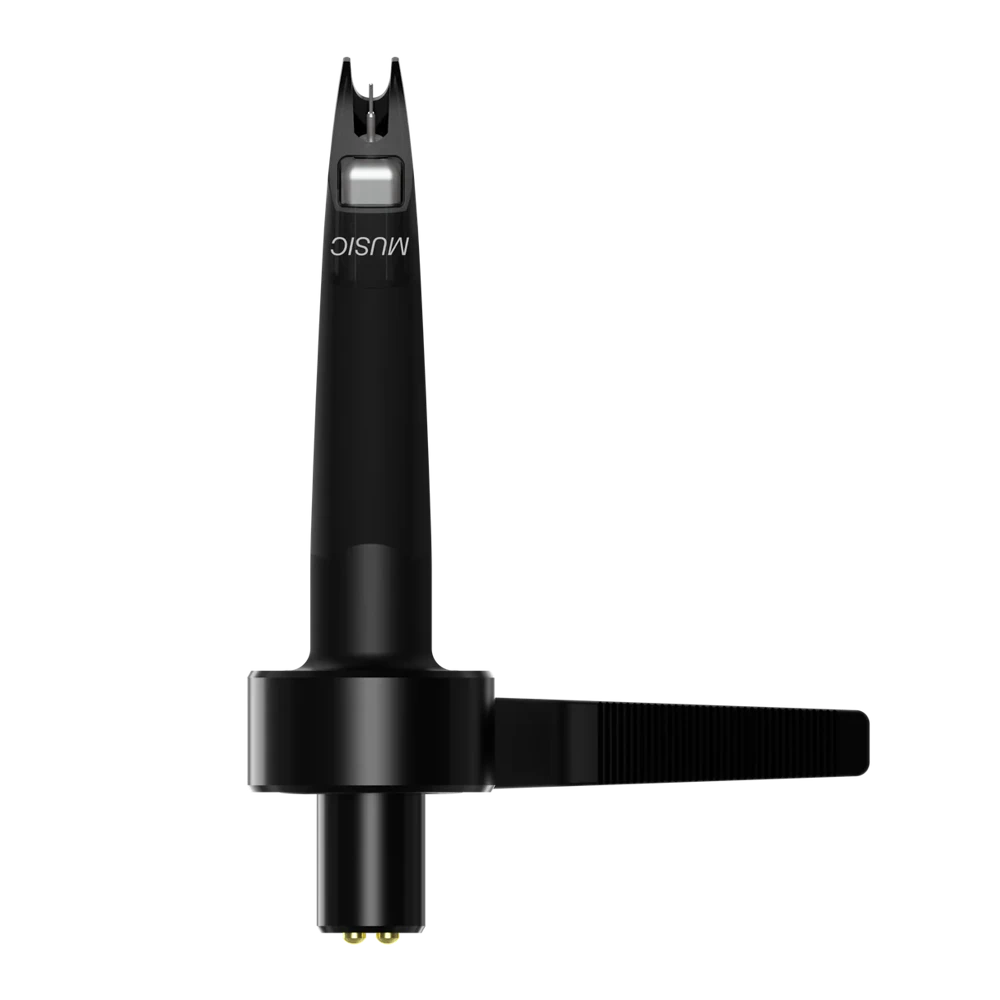

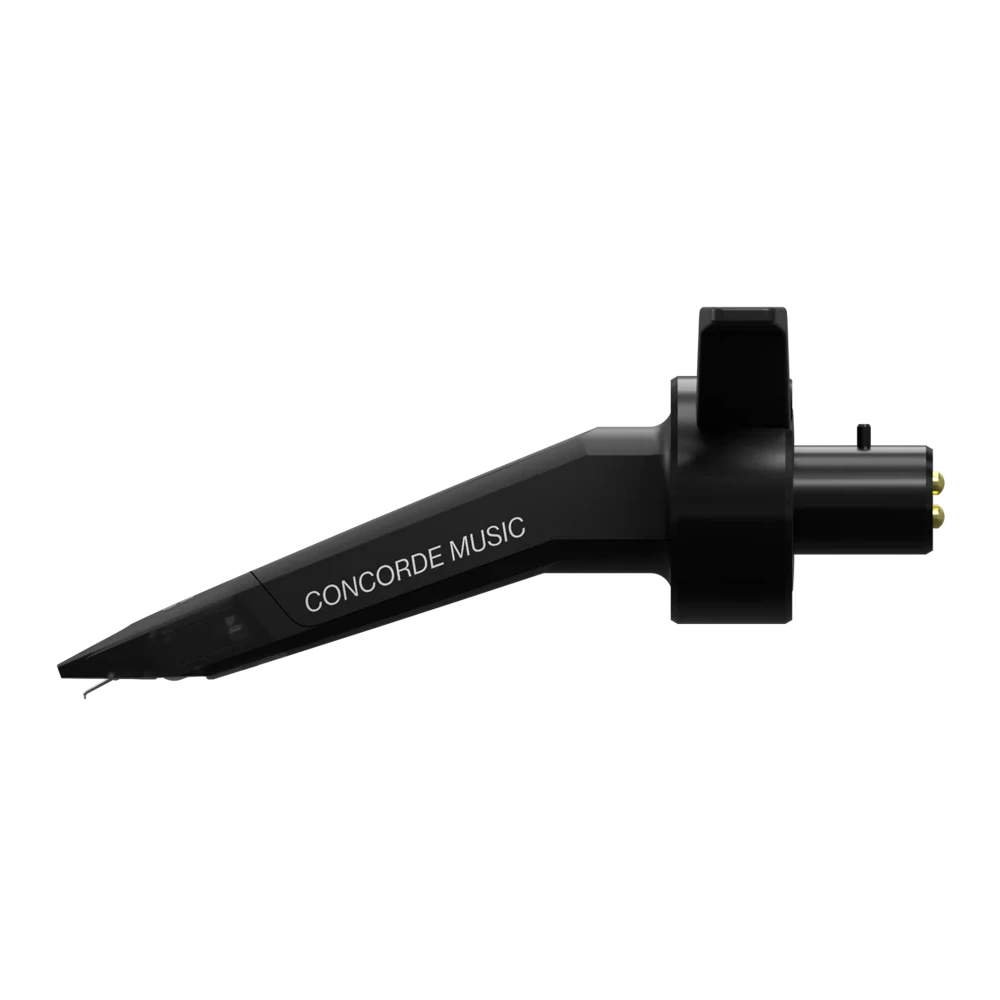

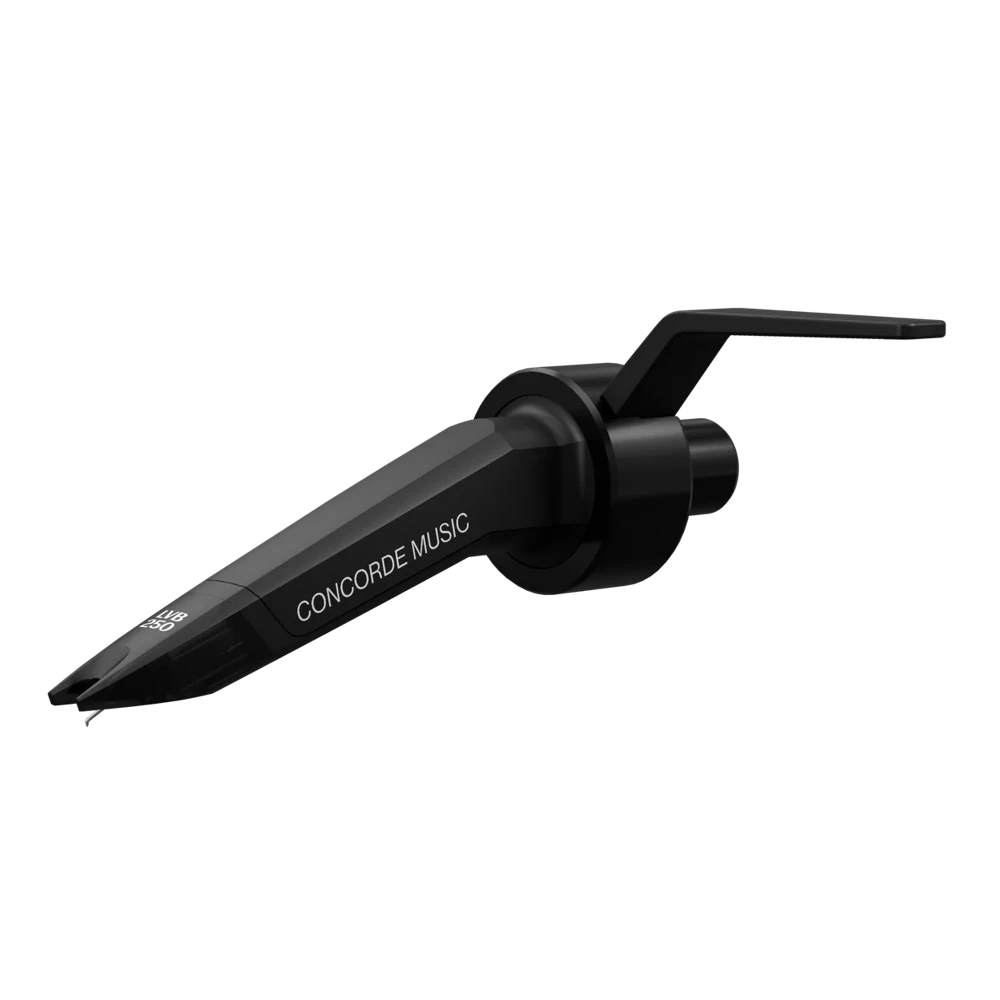

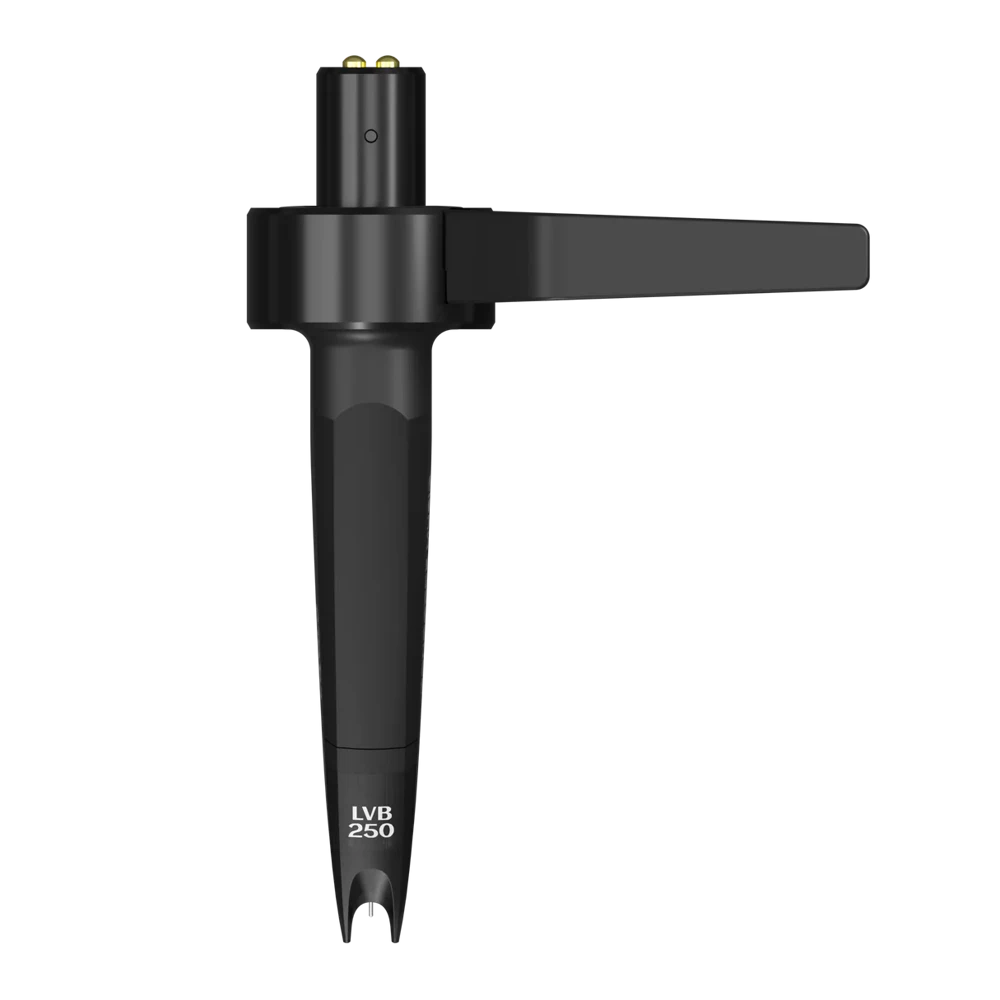

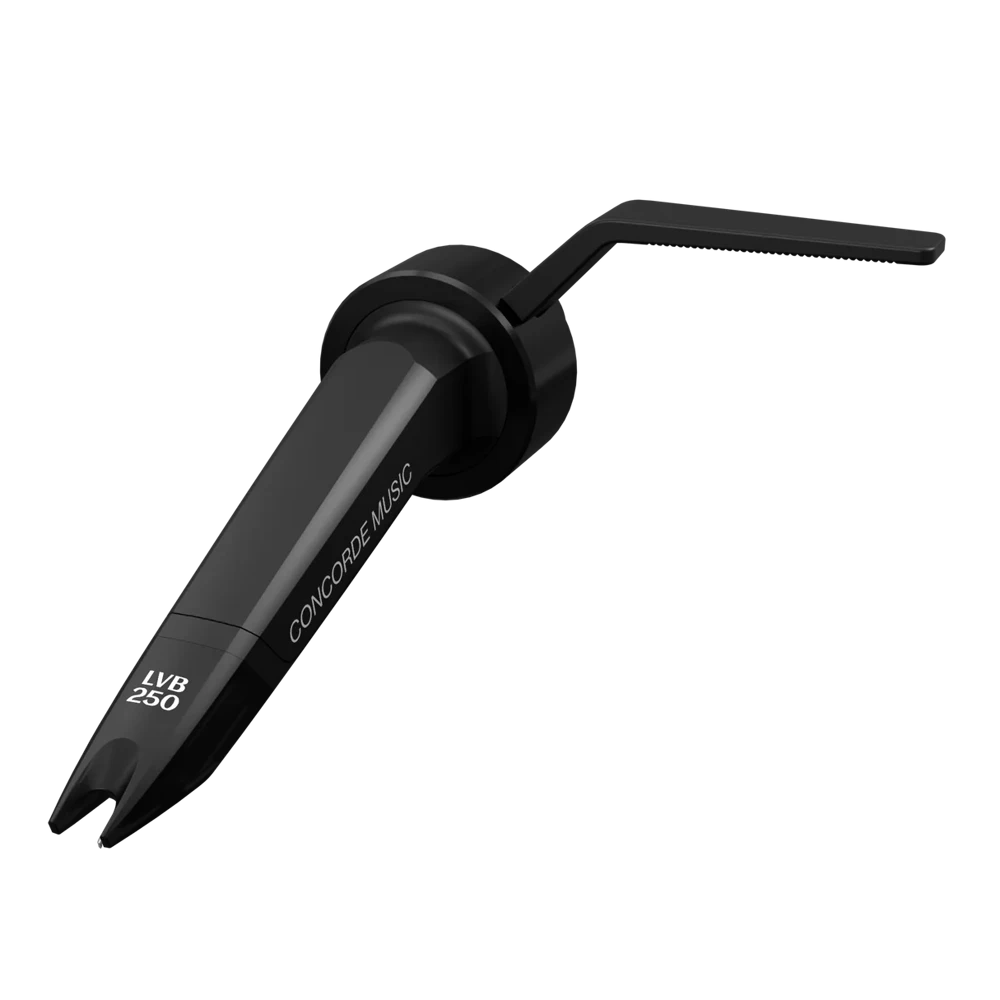

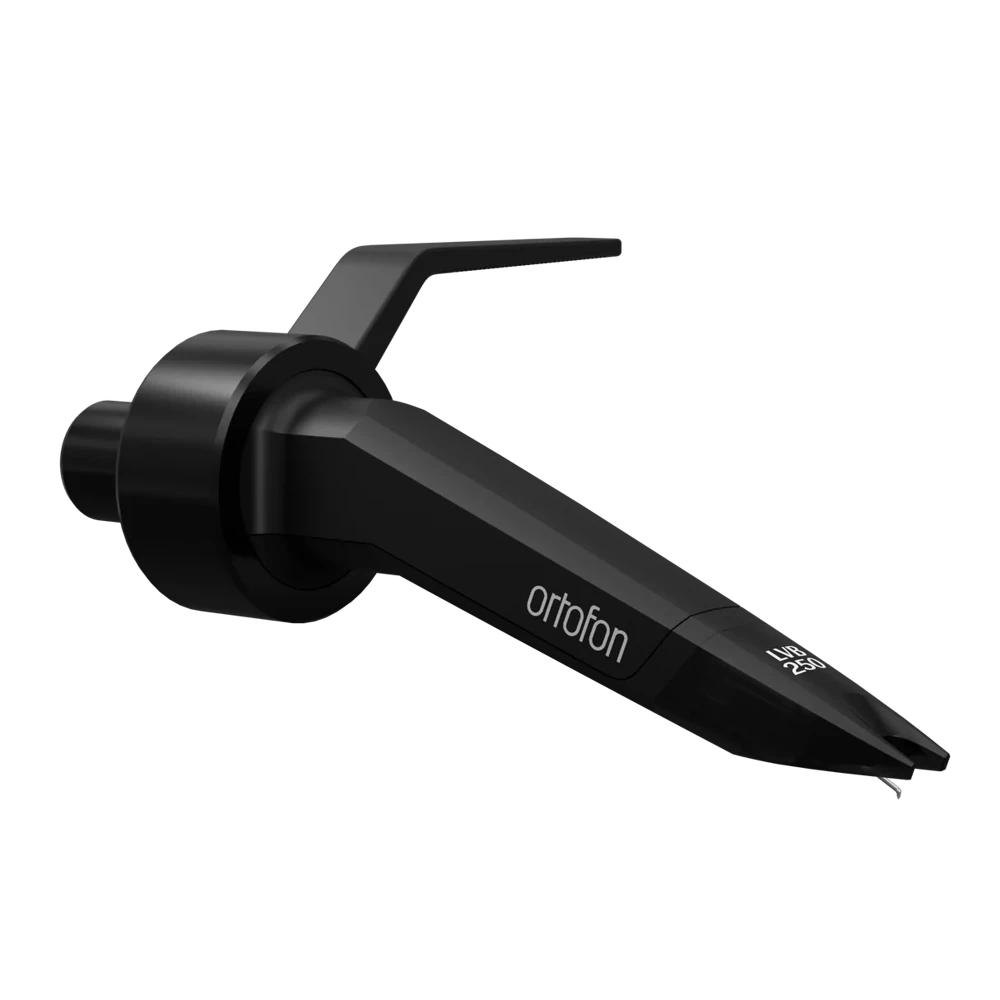

The Ortofon Concorde Black LVB 250 phono cartridge is engineered for audiophiles and professional DJs seeking superior audio fidelity and robust construction. This model, celebrating the 250th anniversary of Ludwig van Beethoven, incorporates advanced materials and design to deliver precise sound reproduction and durability. It features a Shibata diamond stylus mounted on a Boron cantilever, offering enhanced tracking and reduced record wear, making it an ideal choice for high-performance applications.

Key Features

• Shibata Diamond Stylus: Offers precise sound reproduction with minimal distortion.
• Boron Cantilever: Ensures low mass and high stiffness for accurate tracking.
• High Output Voltage: Provides a strong signal for reduced noise and distortion.
• Superior Channel Separation: Delivers a clear stereo image.
• Durable Construction: Built to withstand professional use while maintaining performance.
• Compatibility: Easy to integrate with various tonearms and turntables.

Detailed Description

Stylus and Cantilever Design

The Ortofon Concorde Black LVB 250 features a Shibata diamond stylus, known for its superior ability to trace complex grooves with precision. The Shibata stylus shape is particularly effective in reducing high-frequency distortion and wear on vinyl records, providing an enhanced audio experience. Coupled with a Boron cantilever, the stylus achieves a remarkable balance of low mass and high stiffness. This combination allows for more accurate groove tracking, delivering detailed and transparent sound reproduction across the entire frequency spectrum.

Tracking Performance

The Concorde Black LVB 250 excels in tracking performance, maintaining stable contact with the record groove even during demanding playback conditions. It achieves a tracking ability of 80 µm at the recommended tracking force of 1.8 grams. This exceptional tracking capability minimizes the risk of skipping and distortion, ensuring reliable and precise audio playback. The cartridge's dynamic lateral compliance of 15 µm/mN contributes to its ability to handle a wide range of audio dynamics and complex musical passages.

Output Voltage and Channel Separation

With an output voltage of 6 mV at 1 kHz and 5 cm/sec, the LVB 250 delivers a robust audio signal that minimizes the need for additional amplification, reducing potential noise and distortion. This high output voltage ensures a clean and powerful audio signal. Additionally, the cartridge offers superior channel separation, with 26 dB at 1 kHz and 20 dB at 15 kHz. This characteristic enhances the stereo image, providing listeners with a clear and immersive audio experience.

Frequency Response

The frequency response of the Concorde Black LVB 250 is rated at 20 Hz to 20 kHz, with a tolerance of +2 / 0 dB. This wide and flat frequency response ensures that all audio frequencies are reproduced accurately, from the deepest bass to the highest treble. The precise frequency response allows the cartridge to capture the full range of musical expression, offering a balanced and natural sound quality that is essential for both critical listening and professional DJ performances.

Construction and Durability

Designed with durability in mind, the Ortofon Concorde Black LVB 250 is constructed from high-quality materials that ensure longevity and performance. The cartridge body is engineered to withstand the physical demands of DJ use while maintaining precise alignment and sound quality. Its robust construction protects the internal components, providing consistent performance over time. The black-on-black color scheme adds a touch of elegance, reflecting its premium build quality.

Compatibility and Integration

The Concorde Black LVB 250 is designed for easy integration with a variety of tonearms and turntables. Its standard mounting design ensures compatibility with most setups, making it accessible to both novice and experienced users. The cartridge's ease of use and straightforward setup process allow users to quickly achieve optimal performance. The design also facilitates easy stylus replacement, enabling users to maintain peak performance with minimal effort.

Technical Specifications

Please read the recommendations for stylus and record care: Ortofon's HiFi FAQ
