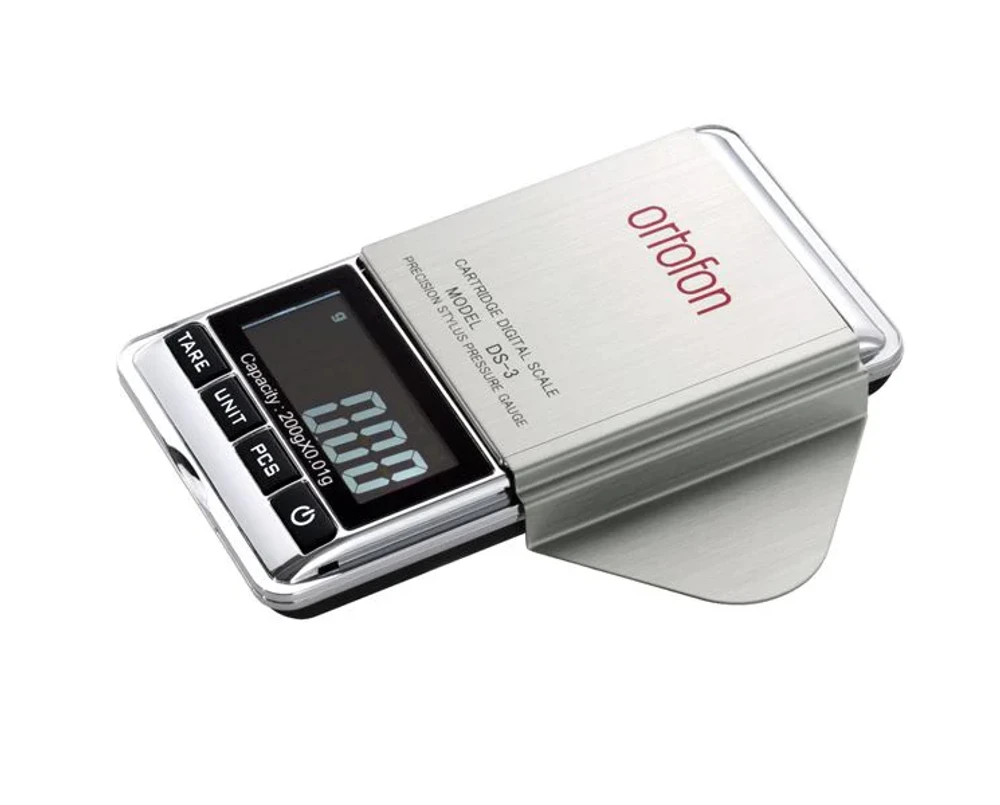

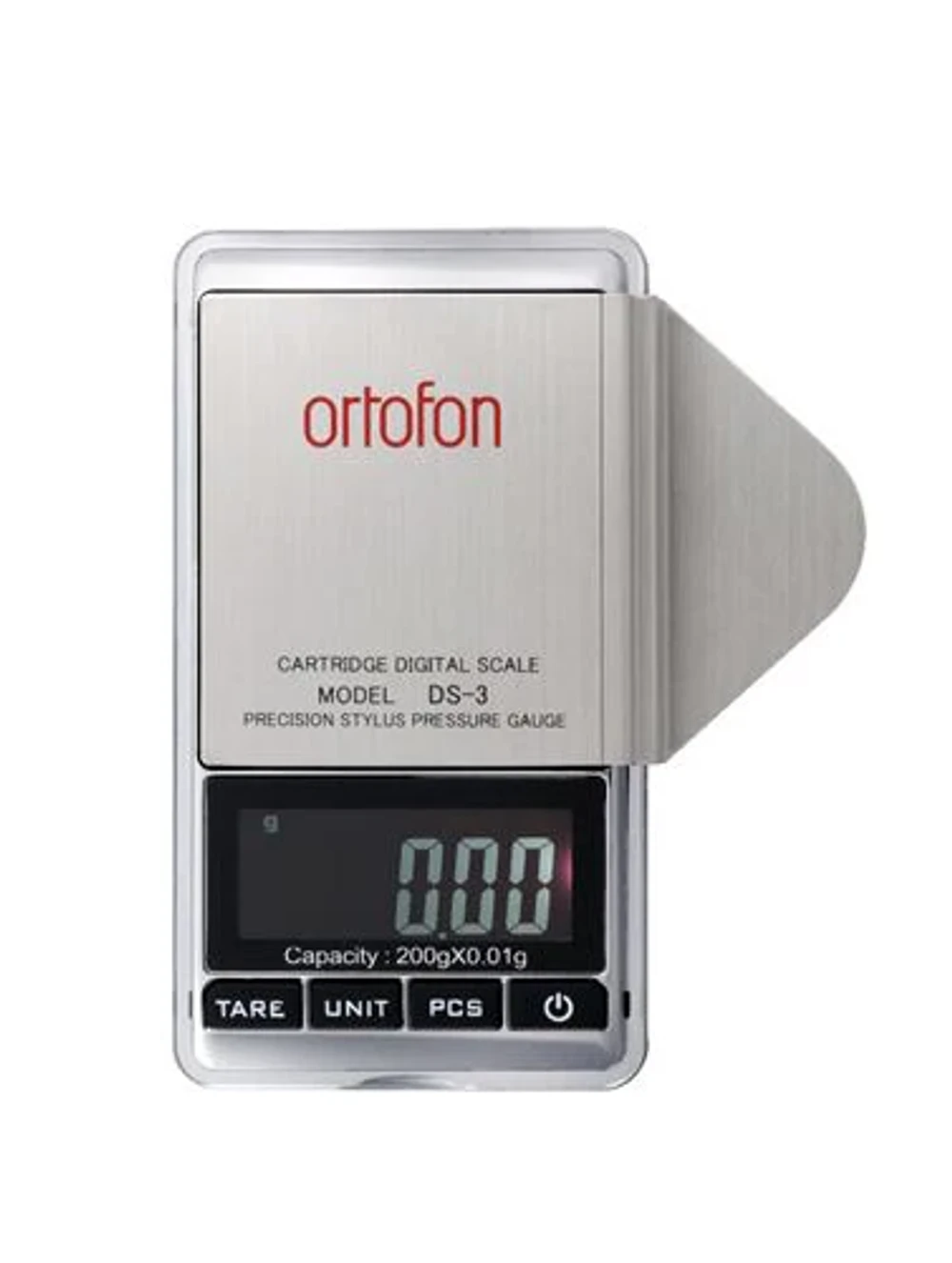

The Ortofon DS-3 Digital Stylus Pressure Gauge is a compact, lightweight, and highly precise tool designed for accurately measuring the tracking force of a turntable's stylus. It is a non-magnetic instrument that provides high accuracy and is essential for optimizing the performance of your tonearm. Pre-calibrated at the factory, it offers reliable measurements with a tolerance of +/-0.01g.

How to Use the DS-3

• Turn on the device by pressing the ON button. The display will show 0000.
• Select the measurement unit by pressing the UNIT button. The default setting is gram (g).
• Measure the stylus pressure by placing the stylus on the measurement plate located on the right side of the device. The display will start blinking. Once the measurement is completed, the display will stop blinking, showing the stylus pressure.
• Power-saving features: The display screen will automatically dim to saving mode after 5 seconds of inactivity and will turn off completely after 60 seconds of inactivity.
• Battery replacement: When the battery is low, a LO indicator will flash on the screen. Replace both batteries when this occurs.
• Using the PCS button: The PCS button allows you to calculate the average weight of a single unit and apply it to the total weight for counting purposes. First, weigh a single unit, then weigh the bundle. Press the PCS button, and the display will show the number of units (PCS).

Key Features

• High Precision Measurement: Offers measurement sensitivity up to 0.01g.
• Wide Operational Range: Measures stylus pressure from 0.1 g to 200 g.
• Compact and Lightweight: Weighs only 70 g and has dimensions of 120 mm × 60 mm × 17 mm.
• User-Friendly Display: Equipped with an LCD screen with backlighting for easy readability.
• Energy Efficient: Features an auto-off function to conserve battery life.
• Battery Operated: Uses 2 × AAA batteries, with a low battery indicator.

Detailed Description

High Precision Measurement

The DS-3 is designed with ultra-precision in mind, providing accurate measurements within a sensitivity range of 0.01 g. This level of precision ensures that the stylus pressure is set to the optimal level, which is crucial for high-fidelity audio reproduction. The non-magnetic nature of the device ensures that the measurement process is not influenced by external magnetic fields, further enhancing its accuracy.

Wide Operational Range

The DS-3 can measure stylus pressure ranging from 0.1 g to 200 g, making it versatile enough to accommodate a wide variety of cartridges and tonearms. This range ensures compatibility with almost all turntable setups, from lightweight tonearms to those requiring higher tracking forces.

Compact and Lightweight Design

Weighing only 70 g and with dimensions of 120 mm × 60 mm × 17 mm, the DS-3 is highly portable and easy to store. Its compact size allows for easy handling and precise placement when measuring stylus pressure. This makes it an ideal tool for both home use and professional settings where space and portability are important.

User-Friendly Display

The device features an LCD screen with backlighting, providing clear and easily readable measurements even in low light conditions. The display is designed to automatically dim after 5 seconds of inactivity, which helps conserve battery life, and will completely turn off after 60 seconds of inactivity.

Energy Efficiency

The DS-3 is powered by two AAA batteries, making it both portable and easy to maintain. It features an auto-off function that helps extend battery life by turning off the device after a period of inactivity. Additionally, the device has a low battery indicator, which alerts the user when it’s time to replace the batteries, ensuring that the DS-3 is always ready for use.

Durability and Usage Considerations

The DS-3 is built to withstand everyday use but should be handled with care to maintain its accuracy. It operates best within a temperature range of +10⁰C to +30⁰C. It’s important to avoid exposing the device to high temperatures, dust, and humidity, as these conditions can affect its performance. Additionally, placing objects weighing more than 200 g on the measurement plate or using the device on an uneven surface can lead to inaccurate measurements.

Technical Specifications

• Protect the device against high temperatures, dust and humidity
• Carefully lower the measurement object on the measurement plate
• Operating temperature range +10⁰ - +30⁰C
• Do not place objects weighting more than 200 g on the measurement plate
• Do not place the device on an uneven surface, it may result in not accurate measurements
