IsoTek

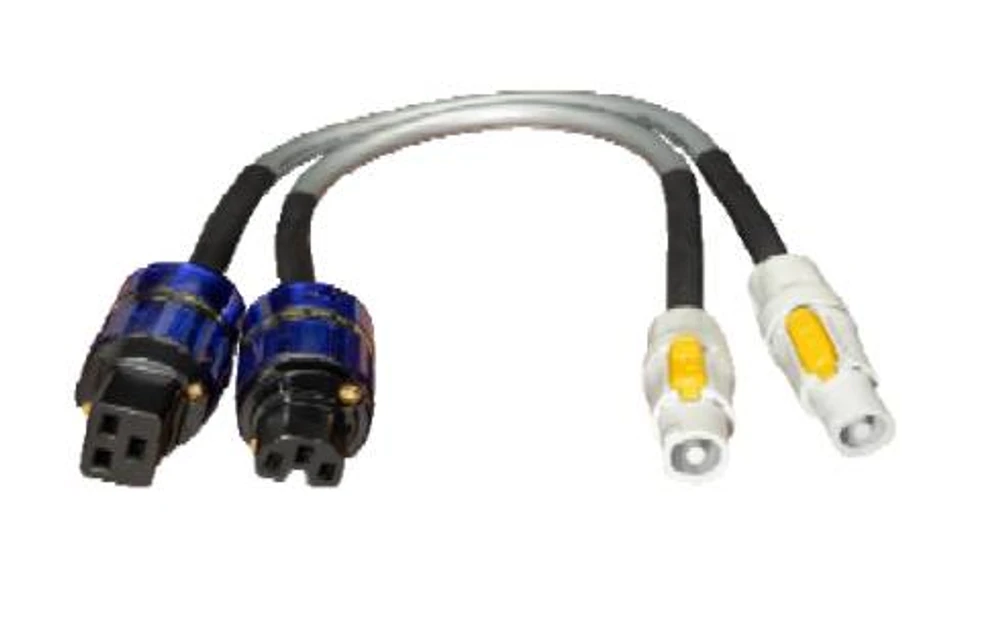

The EVO3 Sequel System Link cable (Neutrik powerCON) is designed to connect multiple units together, maintaining a stared earth reference.

Key Features

• Enhanced Conductors: Utilizes silver-plated 99.9999% Oxygen-Free Copper for improved conductivity.
• Advanced Dielectric: Features a Teflon FEP dielectric, known for its low dielectric constant and high stress crack resistance.
• Robust Shielding: Employs an earthed OFC braid to maximize RFI rejection and minimize common-mode noise.
• Durable Jacket: Uses a flexible PVC outer jacket to provide durability and flexibility.

Detailed Description

Conductor Composition

The conductors in the EVO3 Sequel are arranged in parallel with a slight rotational twist, a configuration aimed at combating RFI and EMI. The silver-plated, highly pure copper enhances electrical conductivity and durability, which are critical for maintaining efficient power transfer over time.

Dielectric and Insulation

The cable utilizes Teflon FEP as its dielectric material, offering a very low dielectric constant across a broad frequency range. This helps in maintaining power integrity by minimizing loss and enhancing safety due to its high resistance to electrical interference and temperature stability.

Mechanical Strength and Flexibility

Cotton is used as a filler to provide internal strength and reduce microphony, which can degrade audio quality. This is complemented by a Mylar wrap that secures the construction and adds an additional layer of insulation before the final PVC jacket is applied.

Shielding and External Protection

An earthed OFC shield is employed to ensure maximum rejection of RFI, safeguarding the integrity of the power carried within. The outer jacket is made of PVC, chosen for its flexibility and mechanical strength. This is important for both protecting the internal components and accommodating the physical demands of typical usage.

Technical Specifications
