Elevate your sound with IsoAcoustics isolation products, including speaker stands, platforms, and mounts designed to reduce vibrations and deliver true clarity.

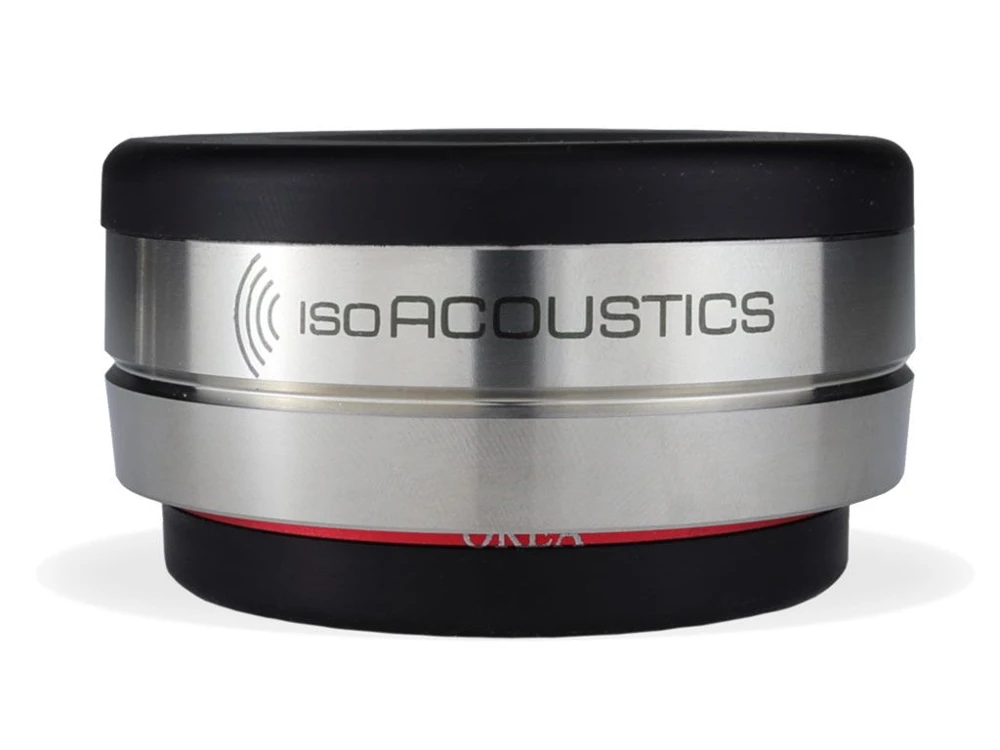

IsoAcoustics OREA BordeauxAudio Isolation Foot
€ 99,00
in stock
shipping within 2 business days
- Free shipping on orders over € 100,- (NL)
- Returns possible within 14 days
- Pickup available (Vries, Drenthe)
Checkout our Sales and DiscountsThe OREA Bordeaux is an audio isolation foot designed to reduce vibrations in high-end audio components, enhancing sound clarity and focus. It is ideal for use with larger equipment such as amplifiers, speakers, and other heavy audio devices. The compact, low-profile design minimizes height addition while effectively isolating vibrations.
Key Features
- Machined stainless steel with a proprietary elastomer core
- Supports up to 14.5 kg (32 lbs) per isolator
- Versatile installation options with or without component feet
Detailed Description
Vibration Control
The OREA Bordeaux isolates vibrations using a high-density elastomer core, precisely tuned to the weight of your component. This significantly reduces resonance, resulting in clearer and more focused sound quality.
Installation Versatility
The OREA Bordeaux is designed for flexible configurations, allowing it to be used with existing component feet or placed directly under the chassis for enhanced performance. A minimum of three isolators is recommended for balanced weight distribution.
Modular Weight Capacity
The OREA Bordeaux's weight capacity can be scaled by using multiple units, making it adaptable to various components. The total capacity is calculated by multiplying the weight capacity per isolator by the number of isolators used.
Total Weight Capacity & Quantity of Isolators
OREA isolators are designed to be used in multiples to match the weight of the component or speaker. The total weight capacity can be calculated as follows:
Total Weight Capacity = [Weight cap. per isolator] x [Qty of isolation feet]
| Quantity | Graphite | Bronze | Indigo | Bordeaux |
|---|---|---|---|---|
| 3 | 5.4 kg | 10.8 kg | 21.6 kg | 43.5 kg |
| 4 | 7.2 kg | 14.4 kg | 28.8 kg | 58.0 kg |
| 5 | 9.0 kg | 18.0 kg | 36.0 kg | 72.5 kg |
| 6 | 10.8 kg | 21.6 kg | 43.2 kg | 87.0 kg |
Using 3 or 4 OREA Bordeaux isolators per component or speaker is common, but it is essential to ensure that the total capacity matches the weight of the component. Consider the weight distribution of the component; if it is heaviest at the back, position two isolators at the back corners and one at the front center for stability.
Technical Specifications
| Weight Capacity per isolator | 14.5 kg (32 lbs) |
| Material | Machined stainless steel with proprietary elastomer |
| Isolation Type | 360-degree isolation |
| Dimensions | 67mm W x 36mm H (2.6” W x 1.4” H) |
